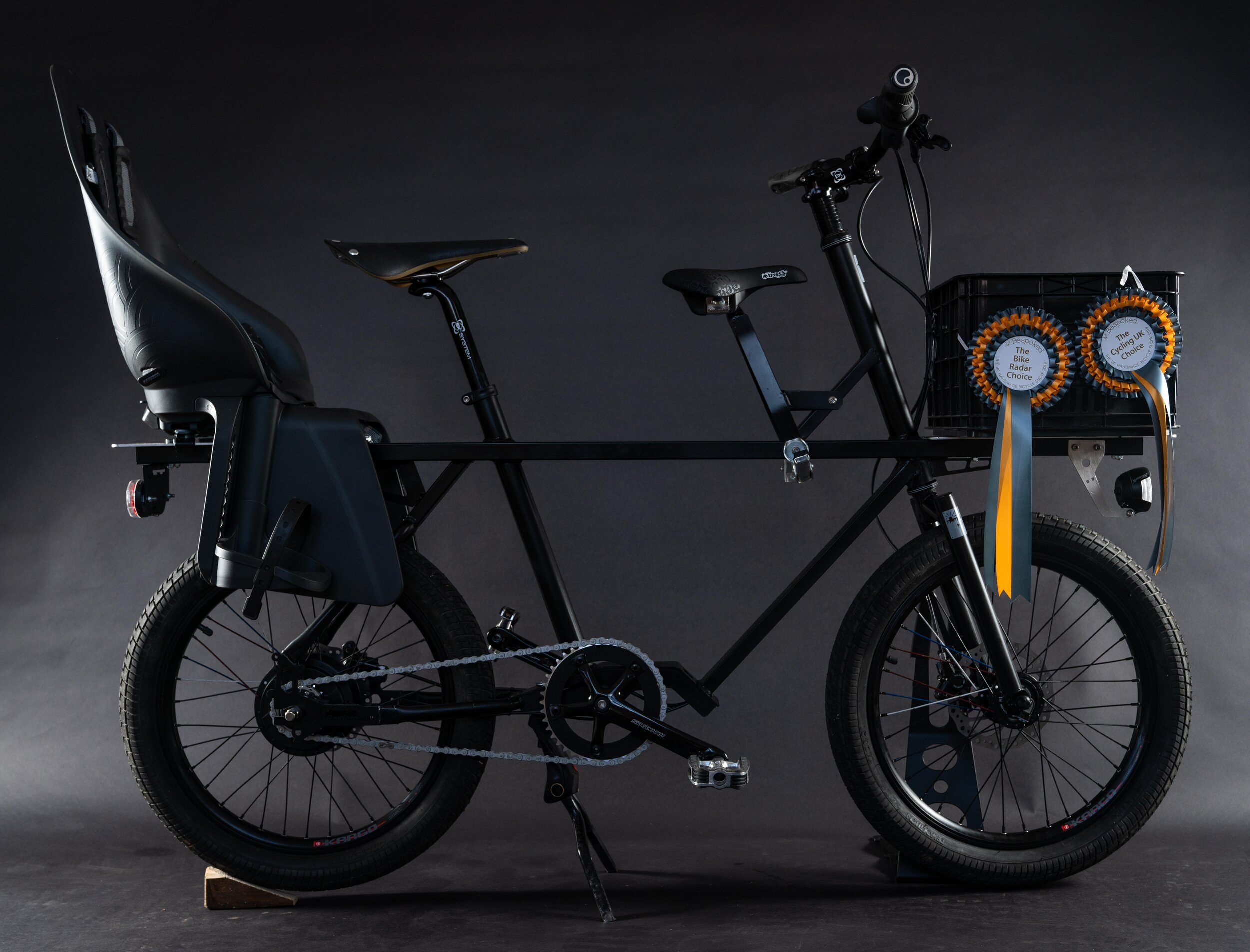

shorter than a standard hybrid bike, and narrow enough to be stored in a hallway, the Big billy will fit on trains, is compact enough to not feel big when using UK’s shared use paths and yet can has the capacity to carry 60kilos of cargo, two children and luggage, or one child and lots of shopping. It’s little but but with a big capacity.
the frame is designed and fabricated in Bristol from steel cut in the midlands. it is designed to be as light as possible but utilising the strength and comfort that only steel can give you. The chassis has many fixing points for locks or water bottle and the front and rear carry plates are designed to fit assessories from Ortlieb, Rixon Kaul, Basil, Steco and all of the rack mounted child seats including Thule and Urban Iki. Crates and panniers fit straight on and the mid mount child seat will work from three year and onwards.
We know that kids get heavier and hills get steeper…we know that budgets are tight and space on the road tighter. You can buy your big billy as a pedal powered bicycle, ride it like the work horse it is, but if you end up feeling like a pack mule, you can fit a mid mounted motor straight on, we equip the big billy from the start with components, the frame fittings, wiring channels and strong hub gearing to make the retro fit a breeze. So if and when the time comes for a bit of electrical assistance…we can supply or fit all you need to give your journeys a boost. Or you can buy it as electric from the start.
Tyres F/R Schwalbe Big Apple Plus 20 x 2.15
Inner tubes Schwalbe SV7
Rim F/R Mach1 Kargo 20inch 36h
spokes F/R 2.3mm 13g extra strong
Hub rear Sturmey Archer 5 speed/Enviolo Tr 36h
Hub front Sturmey Archer 70mm drum / dynamo 36h
fork Rodford Built Disc/Drum
frame Laser cut mild steel
Headset Sealed 1 1/8
Seat post clamp 49mm
Seat pin 27.2mm
Saddle DDK comfort density 42326
Stem System ex
Handlebars Straight/North Road/BMX
Grips Clarks lockon
Bell ding ding
Racks F/R Adapter plates for crates, luggage or child seat ready.
Brakes F/R 70mm Sturmey Archer drum/Hydraulic Disc 160mm
Motor optional Bafang BBS 36v 250W
Battery optional side load hialong 36v 14Ah
chain 3/32 KMC
pedals Wellgo C220
Frame lock optional ABUS
custom frame colours available from £90
Prices from £999 for a Big Billy Basic.
